MTNPROVEN build - Lynx Shredder

The ultimate in performance and durability for your Lynx Shredder

shop now
1/6

Spindles

ELEVATE // Ski-Doo & Lynx

ELEVATE // Ski-Doo & Lynx (Required)

All Wheels Sold In Pairs

ELEVATE // Ski-Doo & Lynx

ELEVATE // Ski-Doo & Lynx

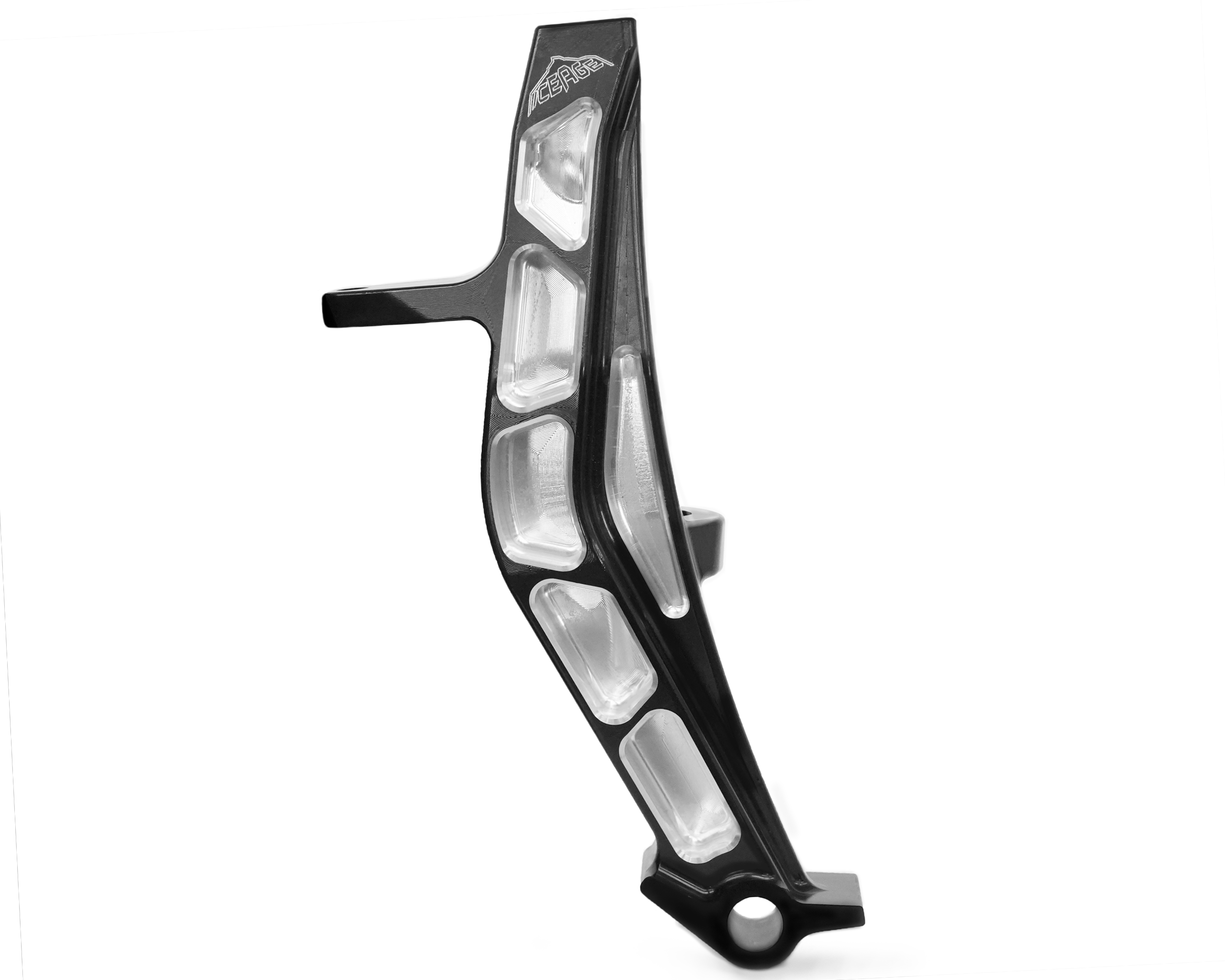

Take your riding to the next level with the ELEVATE kit by IceAge Performance. Starting with the already impressive platform of the Ski-Doo/Lynx chassis, we took years of testing to perfectly hone a spindle / suspension setup combination that drastically improves the agility, handling, and deep snow performance by lifting the chassis without any negative side effects. This increase in height allows the sled to glide over the snow with ease and reduces running board and side panel drag, as well as front end predictability. The ELEVATE kit turns your Ski-Doo Gen4 & Gen5 into a machine capable of dominating the gnarliest terrain the mountains can throw at you. The kit includes spindles, and suspension setup guide, and all the hardware necessary to install.

PRE ORDER: MAY NOT SHIP FOR UP TO 3 WEEKS FROM DATE OF ORDER : projected est. ship date is 12/4/24



Spindle

  • Bulkhead height and snow clearance increased by 1 inch
  • Reduce offset by 50% to decrease steering effort and reduce "auto-steer"
  • Single piece billet 6061 T6 aluminum construction for unmatched strength
  • 2 tone machined / black anodized finish
  • Precise side-hilling in steep terrain
  • Controlled playfulness



SOLD AS A PAIR OF SPINDLES

ELEVATE // Ski-Doo & Lynx

$928.00
ELEVATE // Ski-Doo & Lynx
Next
2/6

Rails

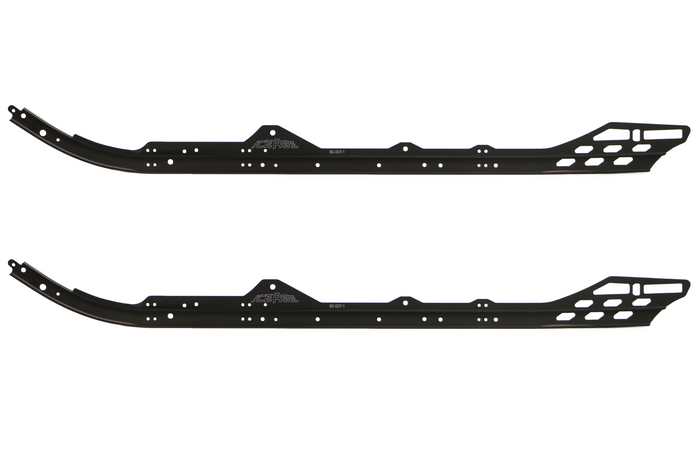

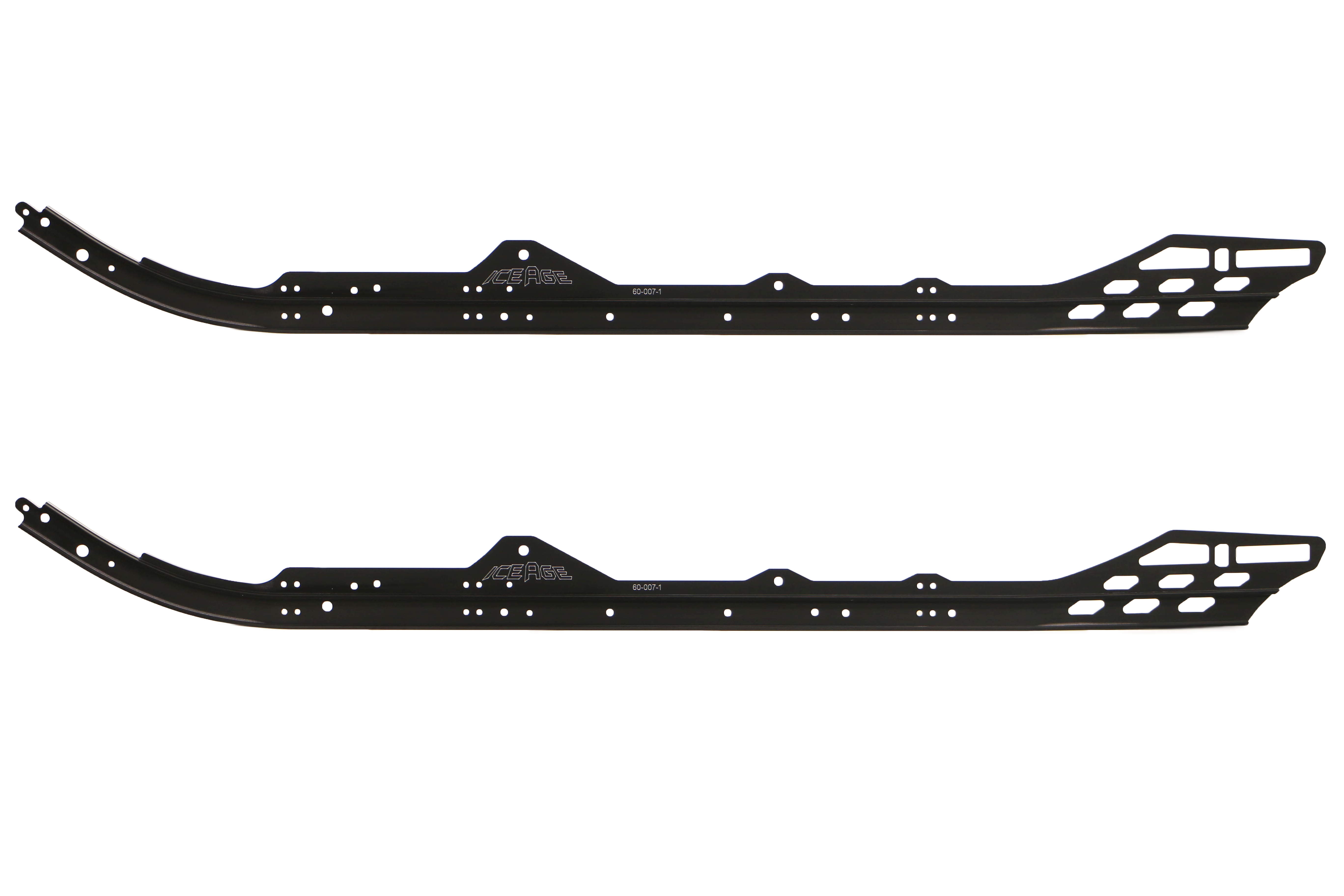

Lynx Shredder Rails

Lynx Shredder Rails (Required)

Lynx Shredder Rails

Lynx Shredder Rails

Replacement slide rails for your LYNX Shredder snowmobile suspension 2023+

Designed and machined from 7000 series aluminum with special attention paid to cutout design and location to create a stronger, more durable rail package then OEM.

Bomber rails have fewer cut outs to create a much stronger, more durable rail that can withstand substantial abuse in the backcountry.



Stock rail stiffeners will need to be modified (milled) if you wish to retain them - or for an ever better stiffener for placement behind the rear torque arm for 154/3900 or longer sleds, we recommend our X - BRACE

Kit includes:

  • 2 rails
  • 2 hi-fax
  • Adjusters and hardware
  • Iceage decal

Lynx Shredder Rails

$698.00
Select Anodizing
Select Rail Length
3700 (146")3900 (154")4100 (165")
Select Style
Bomber
Lynx Shredder Rails
Previous
Next
3/6

Rail Bracing

IceAge X-Brace

IceAge X-Brace (Required)

IceAge X-Brace

IceAge X-Brace

PRE-ORDER : back in stock 12/17/2024 for RAW silver - Black x-braces are discontinued

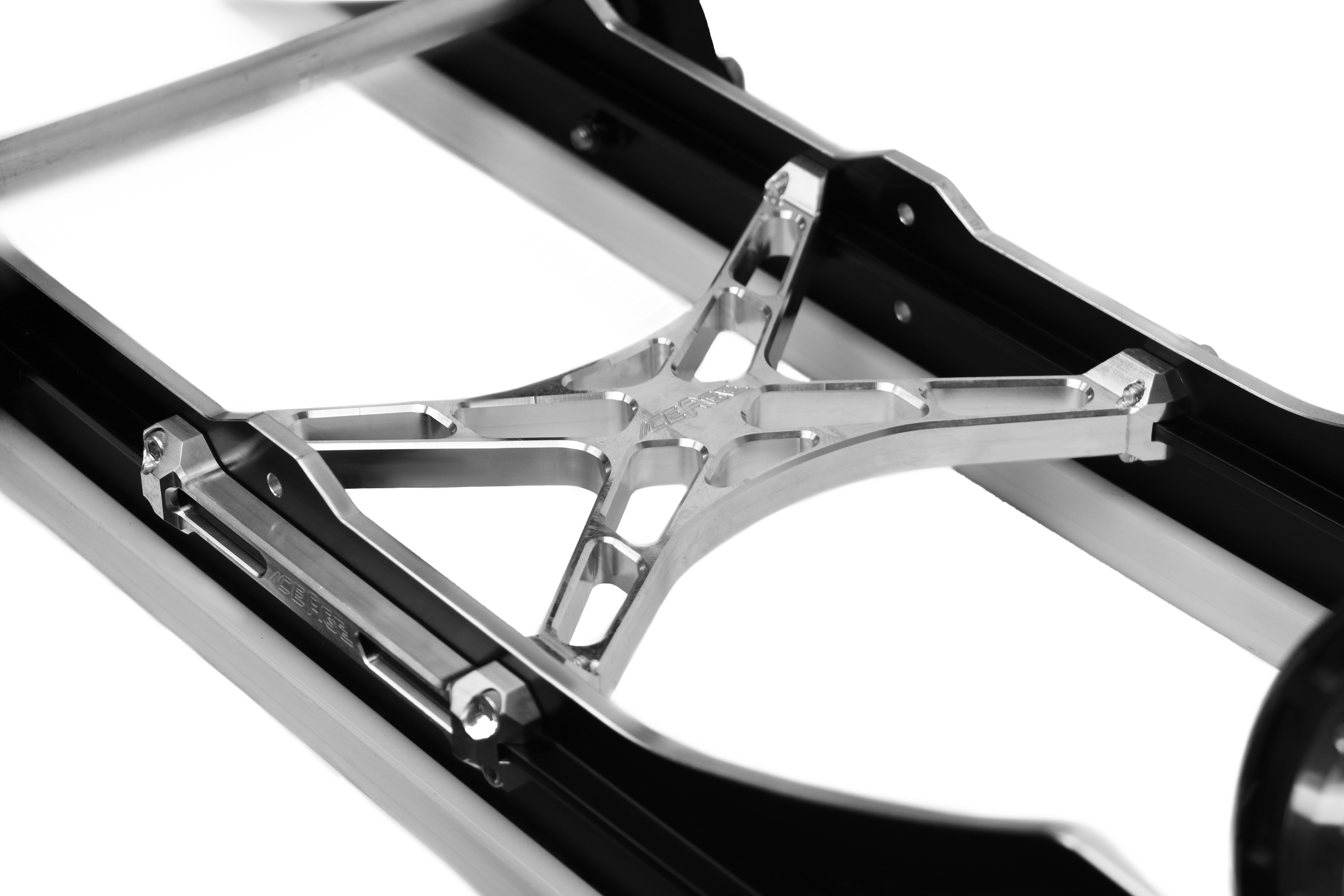

Strengthen your IceAge BOMBER rails even further with the IceAge billet X-Brace. Provides increased torsional strength that far exceeds that of cross shafts or rail stiffeners alone! Designed to mount between the rear suspension torque arm and rear idler wheels this brace has a massive footprint providing great rigidity in the rear suspension.



Confirmed Fitment: (drilling may be required)

Polaris Matryx/Axys Bomber rails 163-174"

Skidoo Gen5/Gen4 Bomber rails 165-175"

LYNX Shredder/Boondocker Bomber rails 154-165" (drilling not required)



 ** Does not fit most 155 or shorter sleds due to lack of clearance between rear suspension arm and rear idler wheels **

The X-Brace has light profile but massive footprint, providing far more strength then current cross shafts. This brace is designed to fit all OEM rails regardless of window patterns.   The mini stiffener outside of the rails couples with the inner X allowing us sandwich the rail, providing maximum support of the rail beam.

The X-Brace can be bolted on essentially wherever space allows.



* Please check fitment before ordering - may require drilling of rails for installation.

** Brace is 6.75" front to back, ensure proper clearance

*** Make sure brace has clearance at full suspension travel as to not cause damage to brace and rear suspension

IceAge X-Brace

$252.00
Product is sold out
IceAge X-Brace
Previous
Next
4/6

Rear Skid Shocks

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker (Required)

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker

SAVE 20 LBS VS STOCK SUSPENSION

With input from our Backcountry Team, the new FOX lightweight mountain shocks improved ride quality is as significant as their weight savings. While it may seem like a stretch, this technology has trickled down from our trophy truck engineering successes. Simply put, we’ve freed the shock to move comfortably by using internal grooves to bypass oil around the piston in the ride zone while providing increased bottom-out resistance for those big hits by eliminating the grooves in the last 30% of travel. This provides the plushness to ride all day with the control you need for maximum fun. Our objective? Retain that great FOX ride feel while increasing bottom-out control.

Shocks Features

  • Simple to use QS3 Compression and Rebound Adjustment

  • Main air / Evol Air chambers for infinite air spring tunability

  • Lightweight bodies and caps

  • Bypass technology for plush ride

  • Premium Fox Factory calibration

  • Preset / ready to ride right out of the box.

ADJUSTMENTS

  • FLOAT air spring (ski / track front)
  • EVOL air chamber (ski)
  • QS3 — 3 position compression (ski)
  • QS3 — 3 position rebound (ski / track front)
  • QS3 — 3 position compression with lock-out mode (track rear)

The combination of the main air spring and the evol air chamber results in an incredibly progressive feel. This means a plush compliant ride over the bumps and ruts while soaking up the biggest jumps and drops without bottoming. Couple this with the simple to adjust QS3 switch and you can go from powder carves to rough trail with the flip of a switch. No more fumbling with tiny iced up knobs and tiny adjustments you can't feel, the Quick Switch technology makes adjustment simple and clear. The positions represent real changes a rider can feel for easy to understand setting adjustments. Large background numbering makes it easy to see which position you are in. The QS3 tech is the perfect match for the mountain snowmobilers needs from novice to expert.

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker

$2,300.00
Select FLOAT Shock Package
Ski - FOX Float QS3R LightweightTrack - FOX Float QS3R Lightweight
FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker
Previous
Next
5/6

Ski Shocks

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker (Required)

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker

SAVE 20 LBS VS STOCK SUSPENSION

With input from our Backcountry Team, the new FOX lightweight mountain shocks improved ride quality is as significant as their weight savings. While it may seem like a stretch, this technology has trickled down from our trophy truck engineering successes. Simply put, we’ve freed the shock to move comfortably by using internal grooves to bypass oil around the piston in the ride zone while providing increased bottom-out resistance for those big hits by eliminating the grooves in the last 30% of travel. This provides the plushness to ride all day with the control you need for maximum fun. Our objective? Retain that great FOX ride feel while increasing bottom-out control.

Shocks Features

  • Simple to use QS3 Compression and Rebound Adjustment

  • Main air / Evol Air chambers for infinite air spring tunability

  • Lightweight bodies and caps

  • Bypass technology for plush ride

  • Premium Fox Factory calibration

  • Preset / ready to ride right out of the box.

ADJUSTMENTS

  • FLOAT air spring (ski / track front)
  • EVOL air chamber (ski)
  • QS3 — 3 position compression (ski)
  • QS3 — 3 position rebound (ski / track front)
  • QS3 — 3 position compression with lock-out mode (track rear)

The combination of the main air spring and the evol air chamber results in an incredibly progressive feel. This means a plush compliant ride over the bumps and ruts while soaking up the biggest jumps and drops without bottoming. Couple this with the simple to adjust QS3 switch and you can go from powder carves to rough trail with the flip of a switch. No more fumbling with tiny iced up knobs and tiny adjustments you can't feel, the Quick Switch technology makes adjustment simple and clear. The positions represent real changes a rider can feel for easy to understand setting adjustments. Large background numbering makes it easy to see which position you are in. The QS3 tech is the perfect match for the mountain snowmobilers needs from novice to expert.

FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker

$2,300.00
Select FLOAT Shock Package
Ski - FOX Float QS3R LightweightTrack - FOX Float QS3R Lightweight
FOX Float QS3R EVOL Lightweight - LYNX Shredder/Boondocker
Previous
Next
6/6

Wheels

HELLFIRE 8" Wheel

HELLFIRE 8" Wheel (Required)

HELLFIRE 8" Wheel

HELLFIRE 8" Wheel

ALL WHEELS SOLD INDIVIDUALLY

Some say you should not try to reinvent the wheel. We beg to differ!

This is the solution we've all been waiting for. Our HELLFIRE wheel combines the tried and true strength of our billet Spitfire wheel with a new hybrid UHMW plastic outer ring for reduced weight, added serviceability, and most importantly the elimination of ice build-up issues.

With thousands of miles of testing in varying conditions and terrain behind us, we can confidently affirm that HELLFIRE is the ideal combination of strength, bearing support, light weight, style, and user serviceability to make it the longest-lasting and most versatile option on the market.

Will not bolt on directly to stock polaris rmk/khaos rails, you will need the BIG WHEEL KIT w/ 7.25 to 9" offset axle to run HELLFIRE wheels on stock rails.

8" size is directly compatible with:

- Polaris RMK/Khaos models 2006 to 2024 equipped with ICEAGE rails

- Skidoo Summit 2013 to 2024

- LYNX 2022+ Boondocker and Shredder 146 (3700) or longer

- Arctic cat twinrail mountain sleds 2012-2018 w/ the addition of our Arctic Cat Proclimb/Ascender wheel spacer , 2019+ models are compatible with the additional of our 2-wheel 1/2" slot axle

- Yamaha Sidewinder M-TX Twinrail sleds 2013-2018 w/ the addition of our Arctic Cat Proclimb/Ascender wheel spacer , 2019+ models are compatible with the additional of our 2-wheel 1/2" slot axle



 Does not include axle.

Key features:

  • Reduced rotating mass from previous designs - (lighten your skid and increase throttle response)
  • Ice-free UHMW outer ring
  • User serviceable
  • Superb hub strength
  • Compatible with studded tracks!
  • Koyo 6004 bearing pre-installed

HELLFIRE 8" Wheel

$166.00
Select Color

I'm getting Wheels from previous component Promo

Select this option if you are getting wheels from previous component promotion.

HELLFIRE 8" Wheel
Previous
Confirm
Components
Product
Quantity
Price
Previous

Looking for the ultimate all-in-one handling performance and durability package on the market? Our MTN PROVEN build is the way.
